Dual-mass Flywheel Installation Note
WARNING: This page is about a different variant/trim than selected.
- Clean the dual-mass flywheel.CAUTION:
- When cleaning the dual-mass flywheel, use a dry cloth with no fluid.
- Do not clean between the primary flywheel and secondary flywheel. Clean only the bolt connecting areas and the contact surface of the clutch.
- Clean the crankshaft thread holes.
- Install the dual-mass flywheel to the crankshaft, and temporarily tighten a new lock bolts.

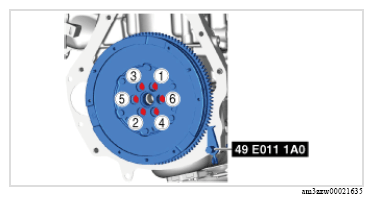

- Hold the dual-mass flywheel using the SST (49 E011 1A0).
- Tighten the lock bolts completely in the order shown in the figure in the 3 steps.
