Rear Oil Seal Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
Special Service Tool (SST)
| 49 S033 101 Dust cover installer |
Replacement Part
| Rear oil seal Quantity: 1 Location of use: Cylinder block |
Oil and Chemical Type
| Engine oil Type: Recommended oil |
- Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (US)] .)
- Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6AX-EL (US)] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

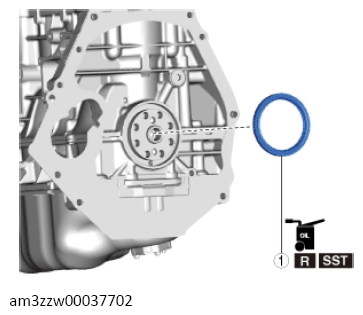

PART DESCRIPTION
| 1 | Rear oil seal (See REAR OIL SEAL REMOVAL NOTE .) (See REAR OIL SEAL INSTALLATION NOTE .) |
