Bolt removal/installation note

WARNING: This page is about a different variant/trim than selected.
  1. When removing or installing the bolt, lock the idler pulley against rotation using the following procedure.
    CAUTION:
    • When connecting the positive battery terminal to the magnetic clutch connector, use a cable with a female terminal of the correct size. Otherwise, load will be applied to the terminal, resulting in deformation or damage, and poor contact. In addition, the positive battery terminal could disconnect from the connector resulting in a short circuit.

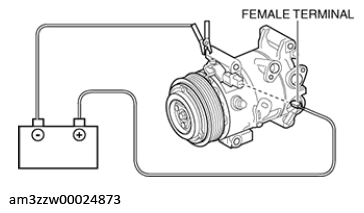

    1. Apply battery positive voltage to the magnetic clutch terminal and connect the idler body to the ground.
      G13174630Courtesy of MAZDA MOTORS CORP.

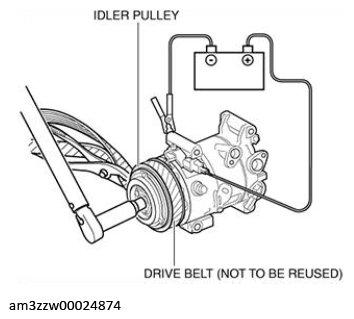

    2. Wrap the drive belt, which is no longer of use, tightly around the idler pulley.
      G13174631Courtesy of MAZDA MOTORS CORP.
    3. Hold the drive belt in place with pliers.
    4. Remove/installation the bolt.
  2. When installing a new Idler body, replace the recommended bolt.
