ECT sensor No. 2

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Remove the coolant control valve. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION .)

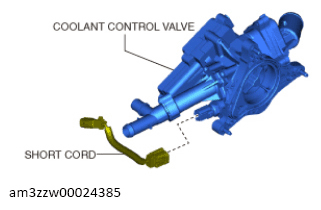

  4. Remove the short cord.
    G13175526Courtesy of MAZDA MOTORS CORP.
  5. Remove the ECT sensor No. 2 using the SST.

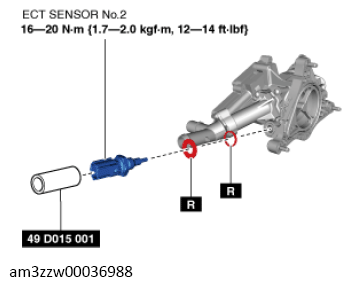

    Fig 1: Engine Coolant Temperature Sensor No. 2 With Torque Specification
    G13714367Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
