Joint Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

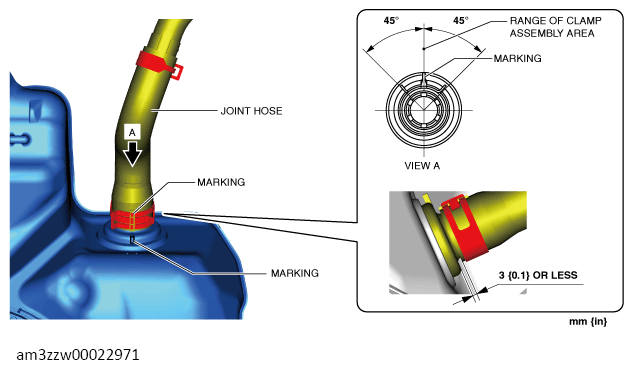

  1. Align the joint hose marking with the pipe marking as shown in the figure and assemble.

    Fuel tank side

    G13557206Courtesy of MAZDA MOTORS CORP.

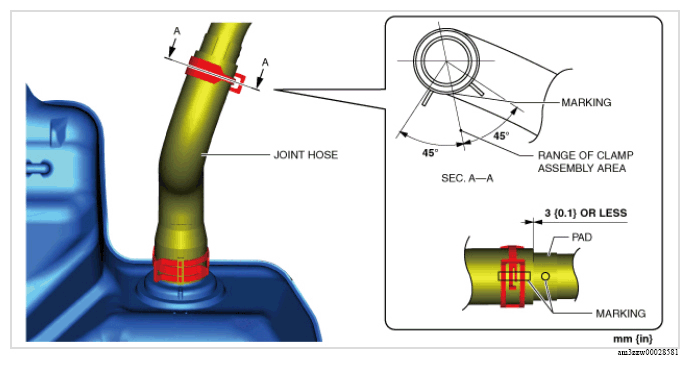

  2. Align the joint hose marking with the fuel-filler pipe marking as shown in the figure and assemble.

Fuel-filler pipe side

G13175082Courtesy of MAZDA MOTORS CORP.
