Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor No. 1 Removal/Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The MAF sensor and IAT sensor No. 1 cannot be removed as a single unit. When replacing the MAF sensor or IAT sensor No. 1, replace the MAF sensor/IAT sensor No. 1.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

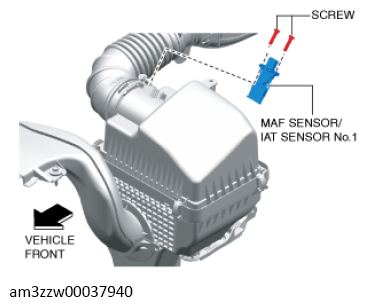

- Disconnect the MAF sensor/IAT sensor No. 1 connector.
- Remove the screws.
- Remove the MAF sensor/IAT sensor No. 1.
- Install in the reverse order of removal.
