WU-TWC installation note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten the WU-TWC installation nuts.

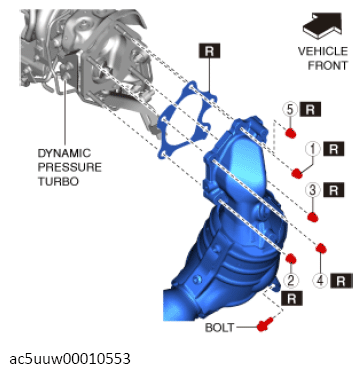

    Fig 1: WU-TWC Nuts Tightening Sequence
    G13672607Courtesy of MAZDA MOTORS CORP.
  2. Tighten the WU-TWC installation nuts in the order shown in the figure to the specified torque.
  3. Temporarily tighten the WU-TWC installation bolt.
  4. Tighten the WU-TWC installation bolt to the specified torque.
