Quick Release Connector (Emission System) Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
Retainer
Quantity: 1
Location of use: Quick Release Connector (Type A) |
Oil and Chemical Type
Engine oil
Type: Recommended oil |
Quick Release Connector Type and Position
CAUTION:
- Verify the type and location, and install/remove properly.

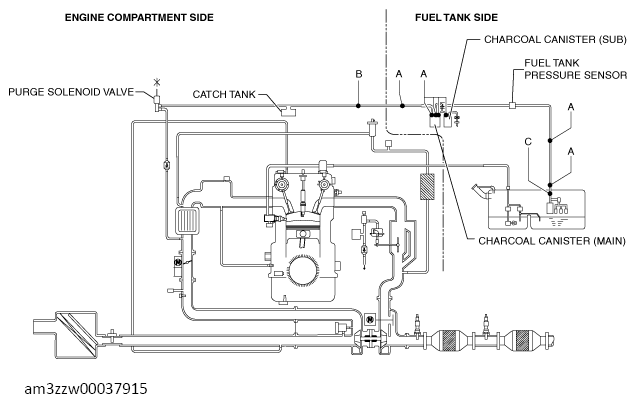

U.S.A. and CANADA
 Courtesy of MAZDA MOTORS CORP.
|

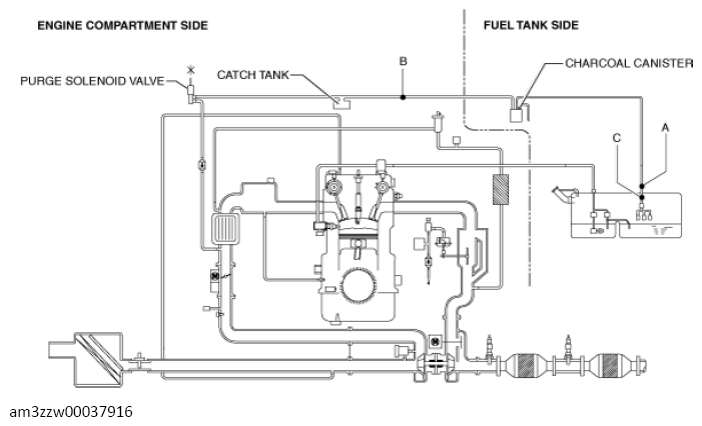

Except U.S.A. and CANADA
 Courtesy of MAZDA MOTORS CORP.
|
