Intake Manifold Side: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

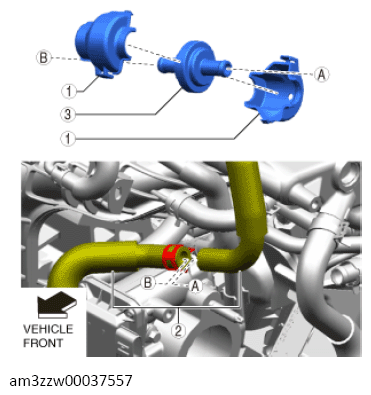

    G13714038Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Cover
    2 Vacuum hose
    3 Check valve (intake manifold side)
    (See CHECK VALVE (INTAKE MANIFOLD SIDE) INSTALLATION NOTE .)
  3. Install in the reverse order of removal.
