Quick Diagnostic Chart

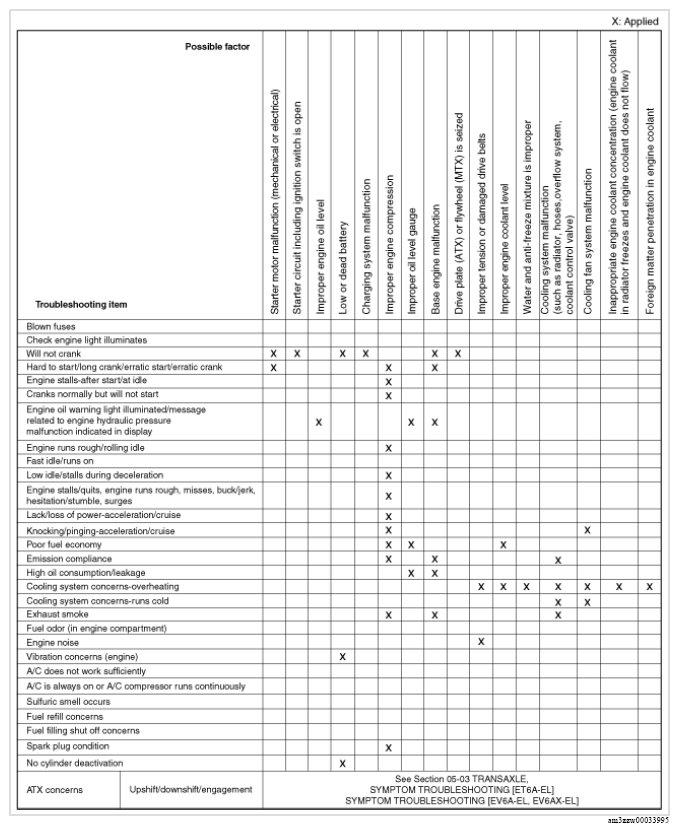

G12726681Courtesy of MAZDA MOTORS CORP.

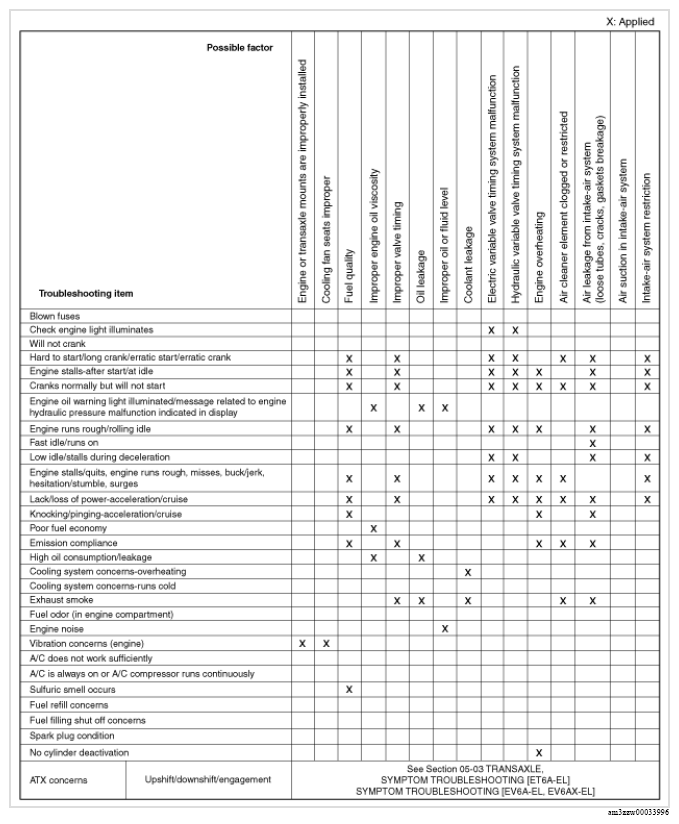

G12726682Courtesy of MAZDA MOTORS CORP.

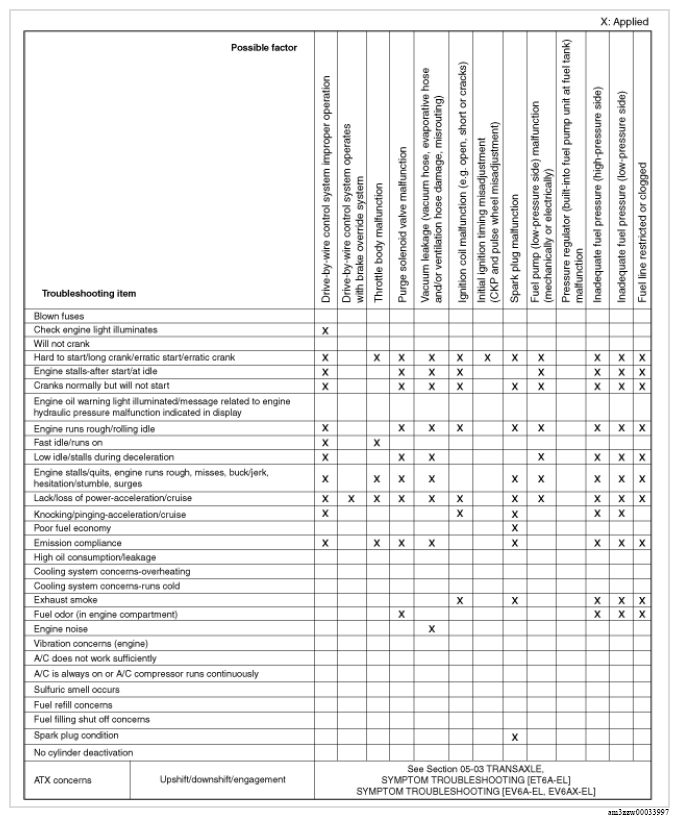

G12726683Courtesy of MAZDA MOTORS CORP.

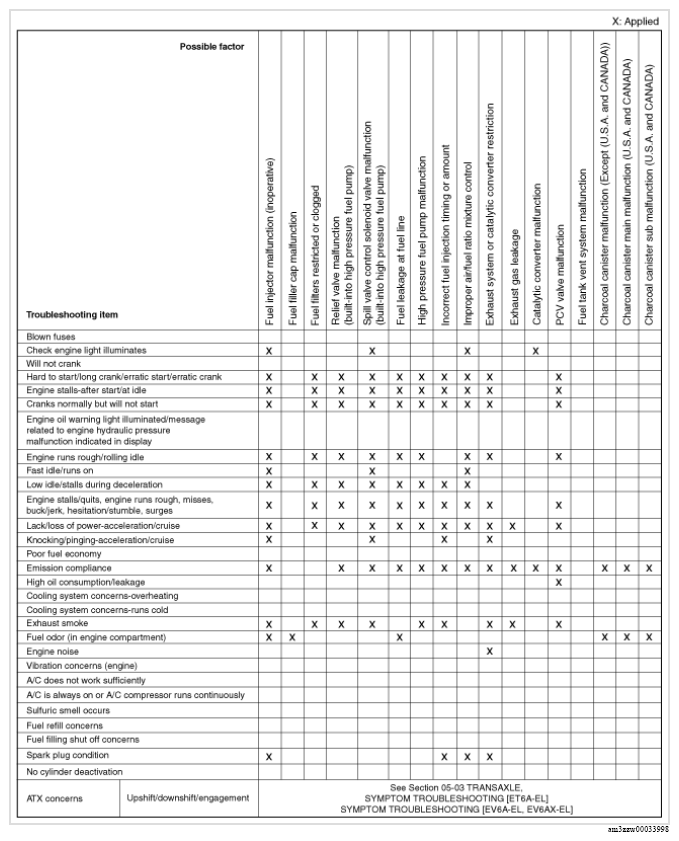

G12726684Courtesy of MAZDA MOTORS CORP.

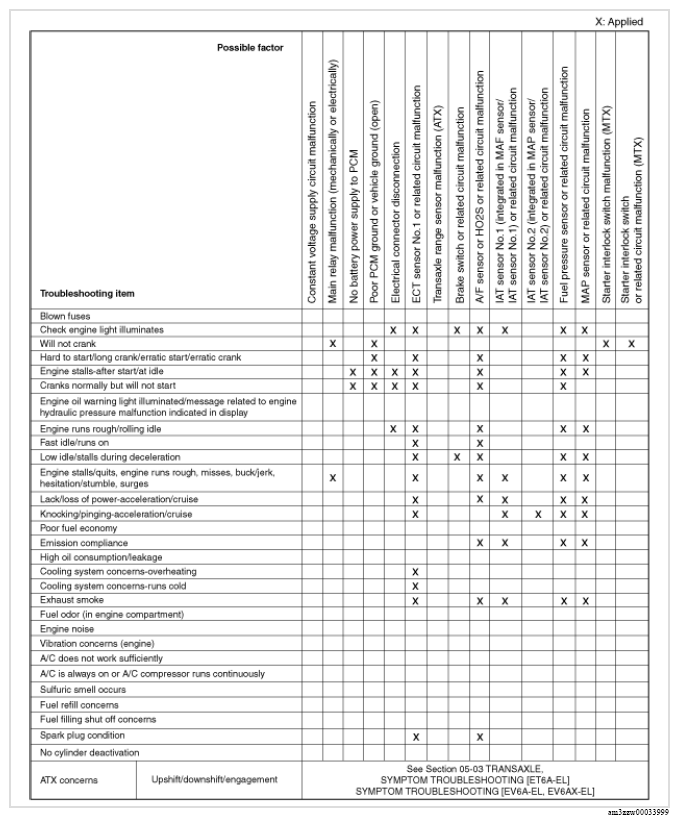

G12726685Courtesy of MAZDA MOTORS CORP.

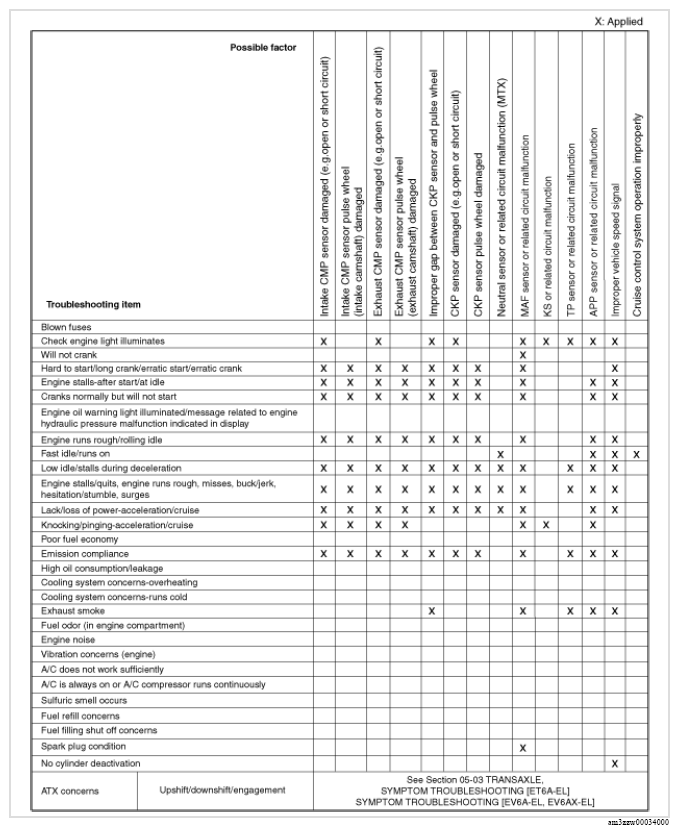

G12726686Courtesy of MAZDA MOTORS CORP.

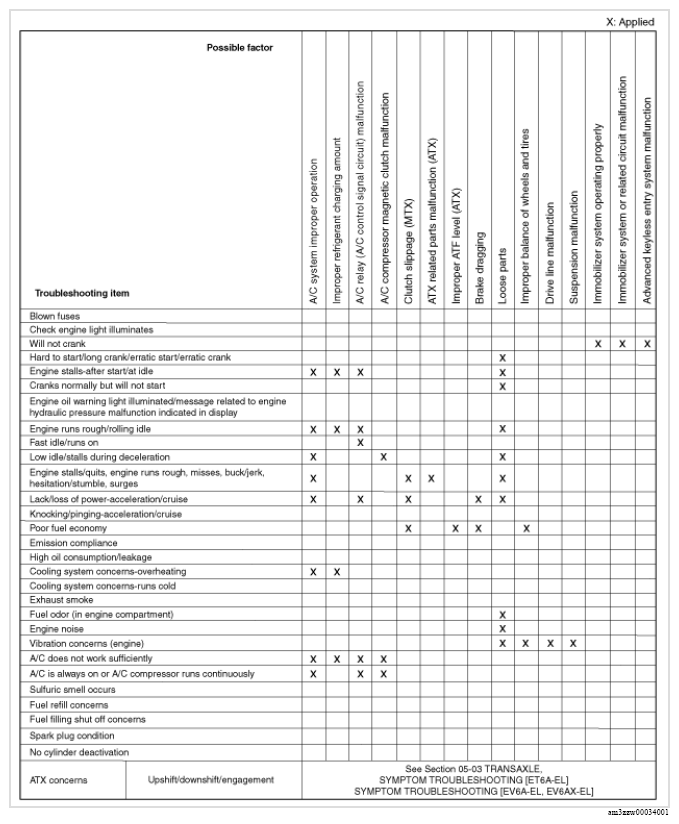

G12726687Courtesy of MAZDA MOTORS CORP.

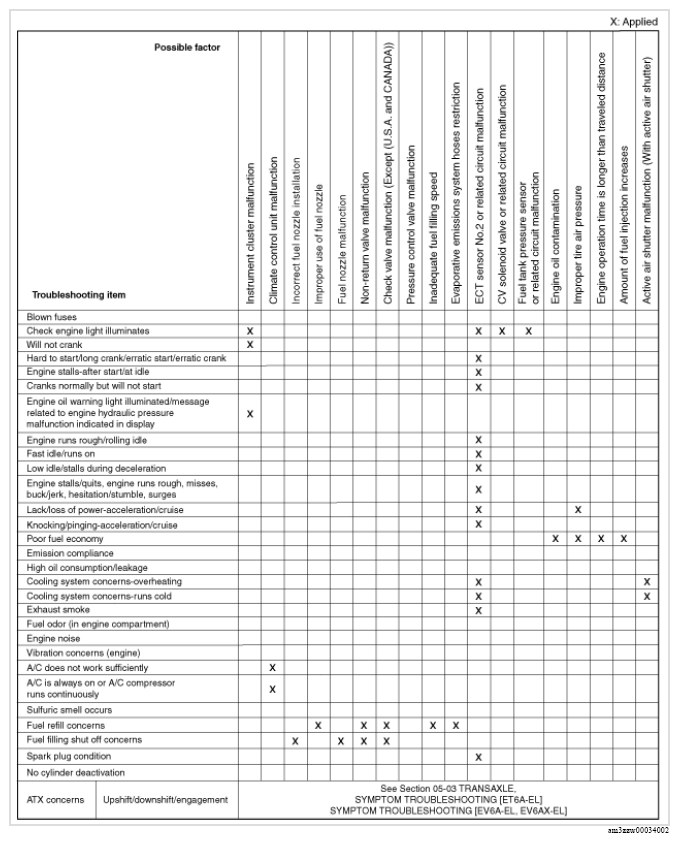

G12726688Courtesy of MAZDA MOTORS CORP.

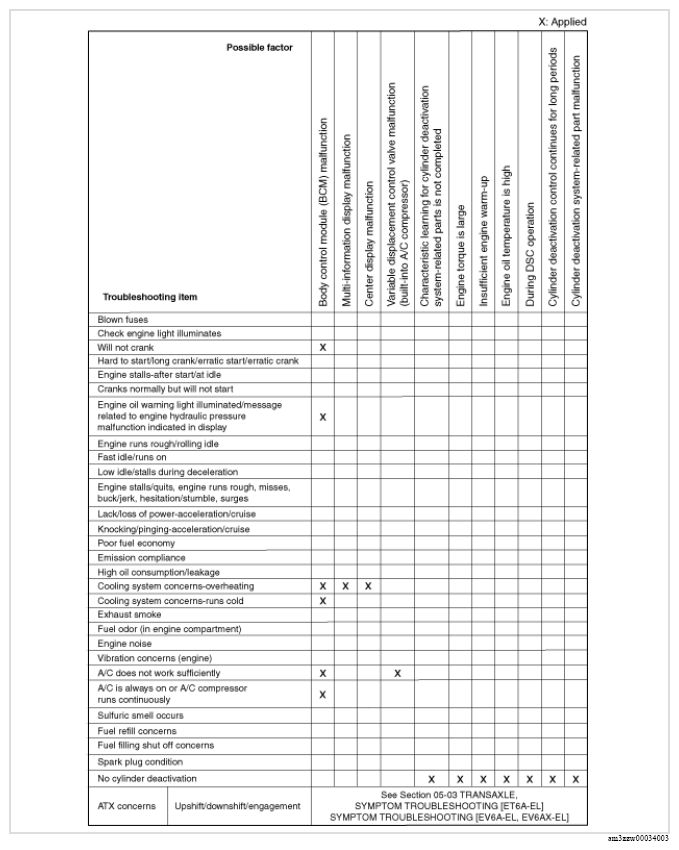

G12726689Courtesy of MAZDA MOTORS CORP.
