Home >> Mazda >> 2021 >> 3 Base >> Repair and Diagnosis >> Engine Performance >> Specifications >> Firing Order & Cylinder Identification >> Firing Order & Cylinder Identification >> Rotary Engine

Rotary Engine

Engine Configuration Firing Order Cylinder Identification
Rotary When idling: T/F-L/F-T/R-L/R
Except for idling: L/F-T/F-L/R-T/R

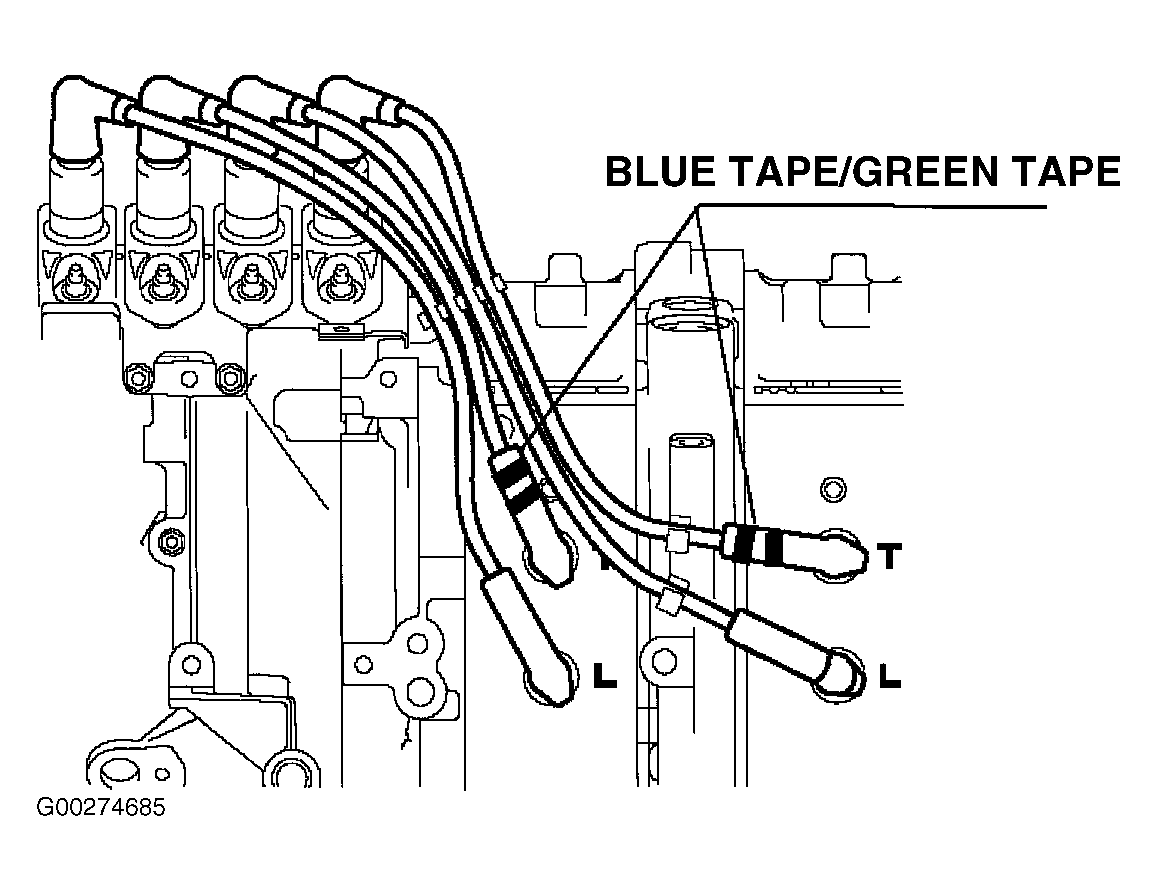

G00274685
