Mode 6 - 1999-2023 MAZDA: CX-9: 2007-10

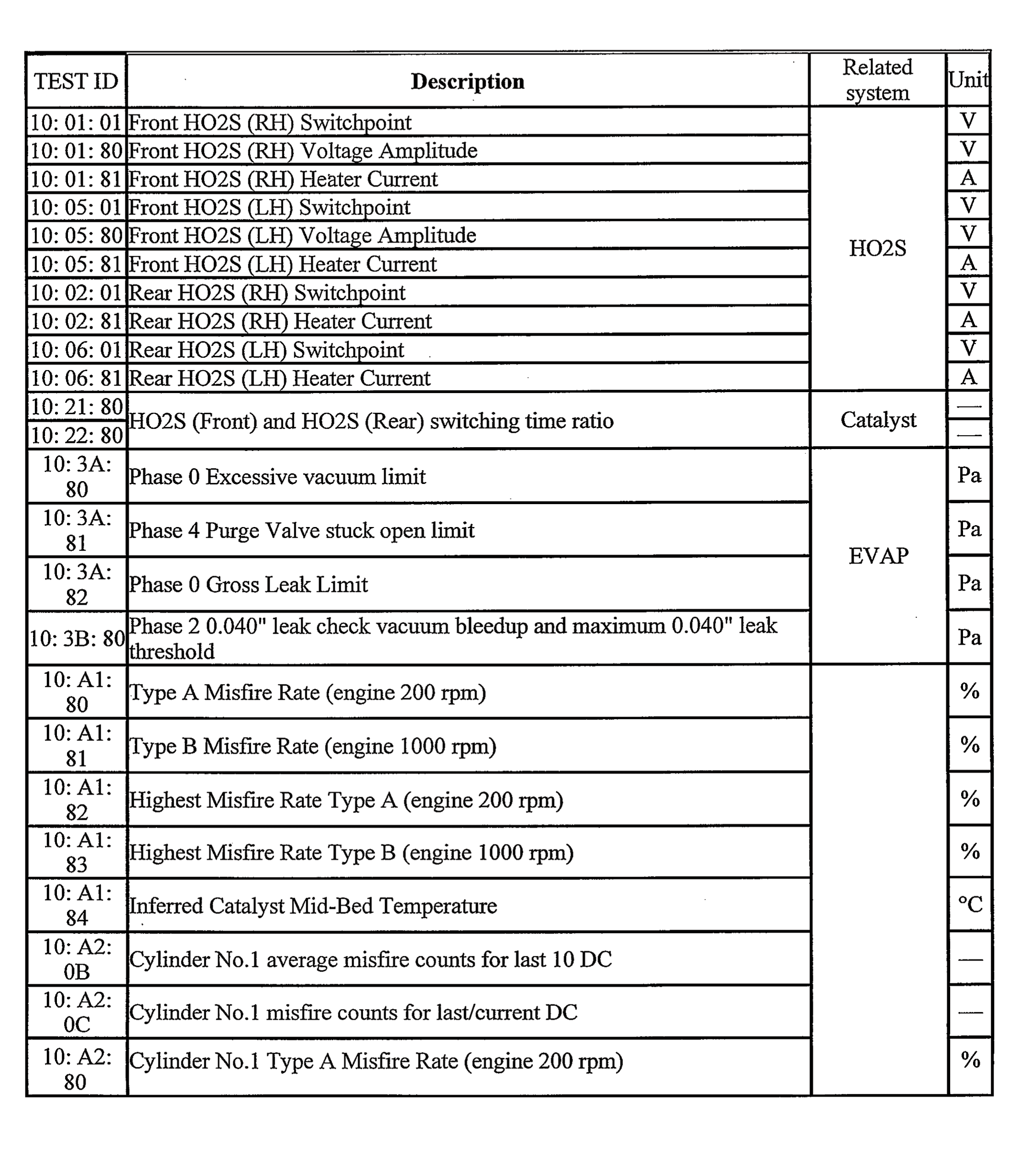

Fig 1: Mode $06 Data For '07-'10 CX-9 (1 Of 2)

G00179560

Courtesy of MAZDA MOTORS CORP.

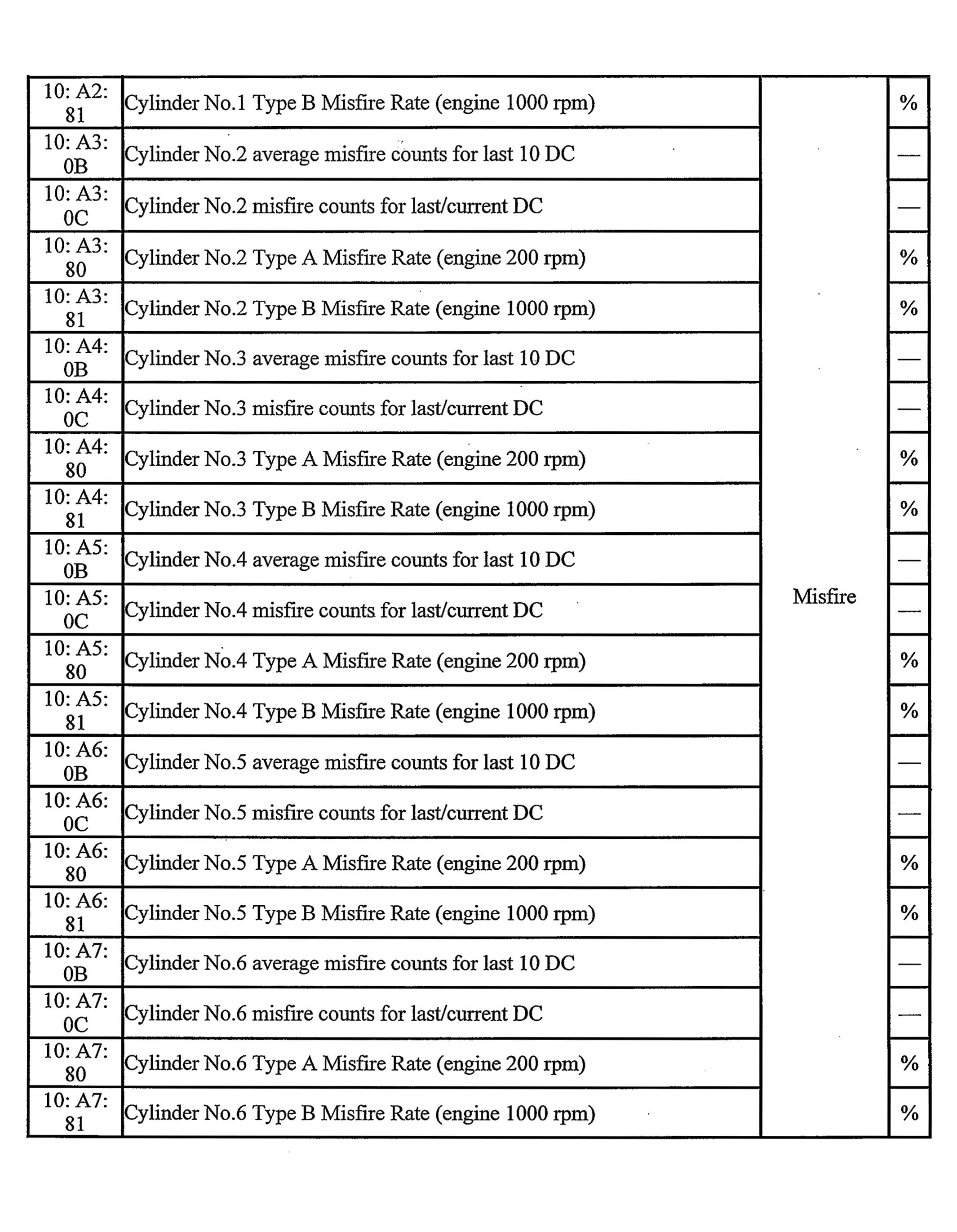

Fig 2: Mode $06 Data For '07-'10 CX-9 (2 Of 2)

G00179561

Courtesy of MAZDA MOTORS CORP.
