B-Series Pickup: 2000-2010

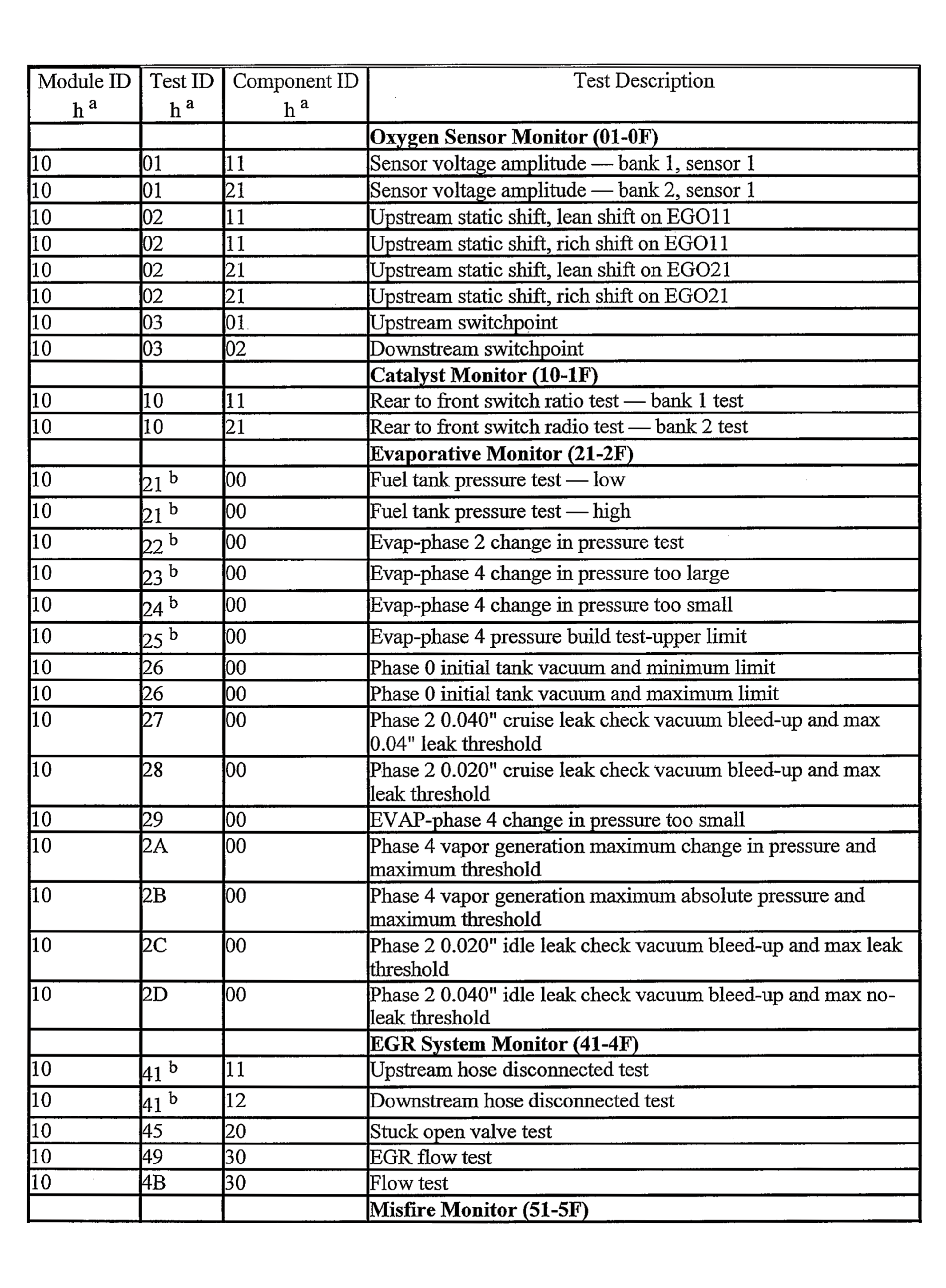

Fig 1: Mode $06 Data For '00-'07 B-Series Pickup (1 Of 2)
G00179557Courtesy of MAZDA MOTORS CORP.

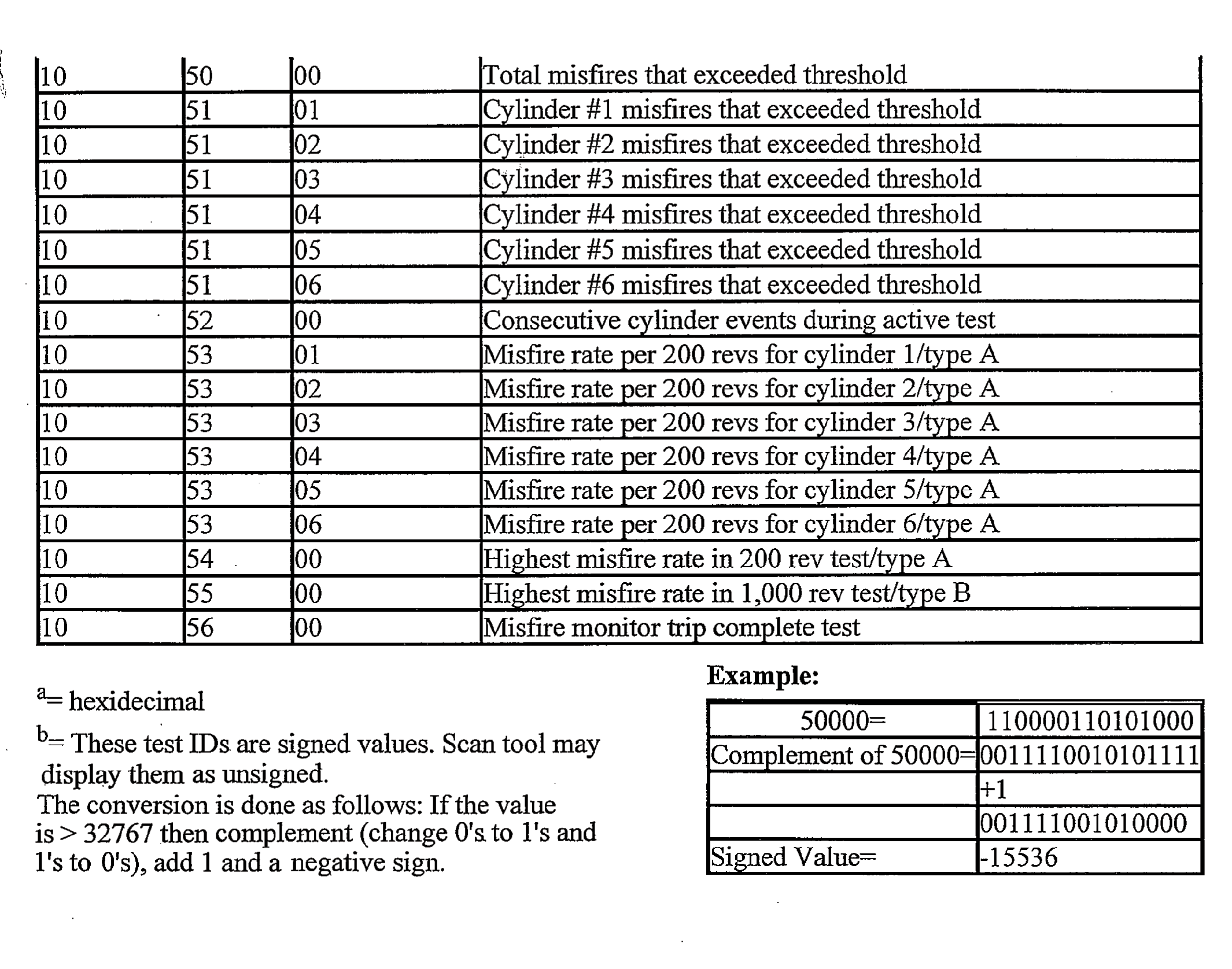

Fig 2: Mode $06 Data For '00-'07 B-Series Pickup (2 Of 2)
G00179558Courtesy of MAZDA MOTORS CORP.
