Fuel Pump Control Module Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

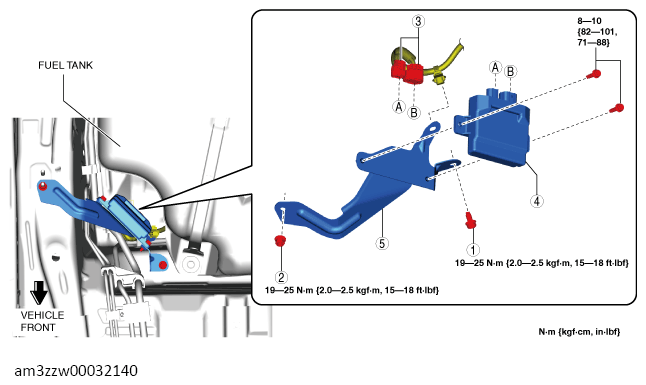

Fig 1: Fuel Pump Control Module Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Fuel pump control module bracket installation bolt
2	Fuel pump control module bracket installation nut
3	Fuel pump control module connector
4	Fuel pump control module
5	Fuel pump control module bracket
