Insulator (Middle) Installation Note

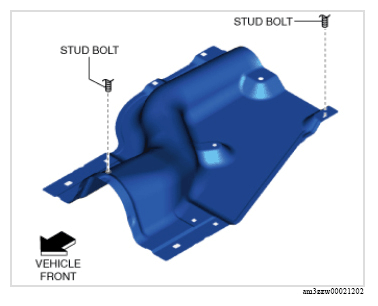

  1. Align the stud bolts shown in the figure with the insulator (middle) and install.

    2WD

    G13175124Courtesy of MAZDA MOTORS CORP.

    AWD

    G13175125Courtesy of MAZDA MOTORS CORP.
  2. Tighten the nuts to the specified torque.
