Bluetooth®(Hands-Free) function (incoming calls)

  1. When an incoming call is received, a mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone sends (1) the incoming call signal to the CMU.
  2. When the CMU receives the incoming call signal, it sends (2) the incoming call pop-up screen display signal (GMSL signal) to the center display.
  3. When the center display receives the incoming call pop-up screen display signal (GMSL signal), it displays (3) the incoming call pop-up screen.
  4. If the pick-up button on the steering switch is pressed while the incoming call pop-up screen is displayed, the CMU detects (4) the steering switch operation.
  5. When the CMU detects the steering switch operation, it sends (5) the call answer signal to a mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone, and the call is initiated.
  6. The mobile device, such as a Bluetooth®-enabled mobile phone or a Smartphone, sends (6) the received audio signal to the CMU, and the signal is output (6) from the speakers via the remote tuner (RT).
  7. The voice recognition-use microphone sends the send audio signal of the user to the CMU, and the CMU sends (7) the received send audio signal to a mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone.
    NOTE:
    • When the call initiates, the incoming call pop-up screen switches to the call screen.

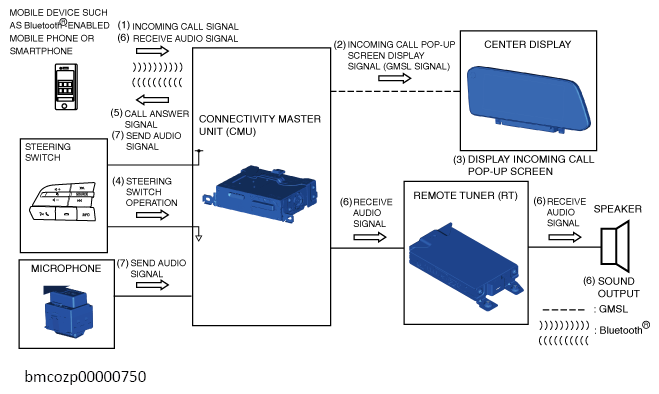

    G13561501Courtesy of MAZDA MOTORS CORP.
