Center Roof Antenna: Operation

  1. The remote tuner (RT) supplies (1) power to the antenna amplifier in the center roof antenna.
  2. The center roof antenna converts (2) the received radio waves of a radio broadcast to an electric signal.
  3. The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends (3) the signal to the remote tuner (RT).

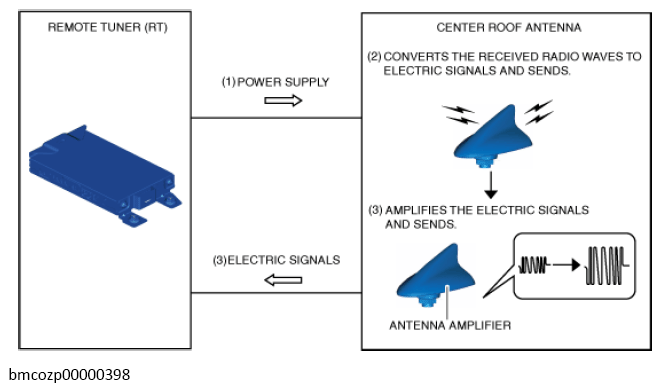

    G13561486Courtesy of MAZDA MOTORS CORP.
