Audio Amplifier (Us): Construction

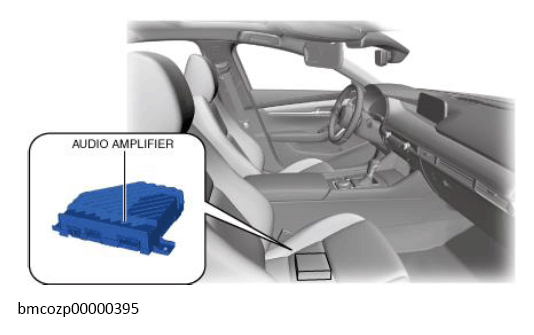

The audio amplifier is positioned under the front seat (RH).
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
