Sunroof Motor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
  3. Disconnect the connector.

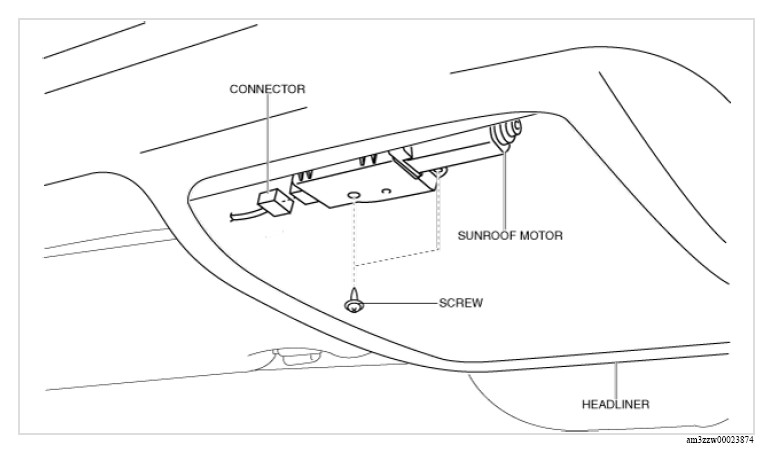

    G13179207Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the sunroof motor.
  6. Install in the reverse order of removal.
