Weatherstrip Installation Note

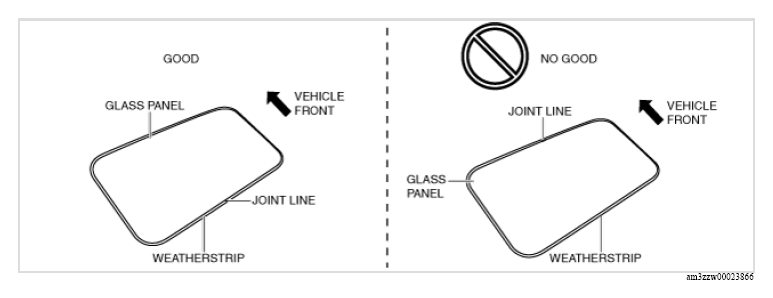

Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.
