Front Mudguard

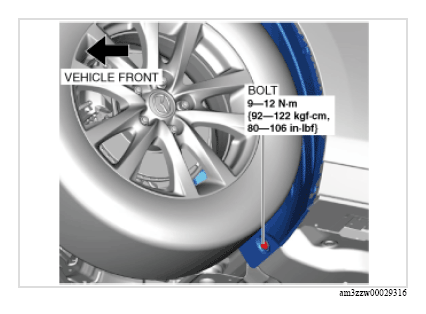

  1. Remove the bolt.
    Fig 1: Front Mudguard Bolt With Torque Specification
    G13179260Courtesy of MAZDA MOTORS CORP.

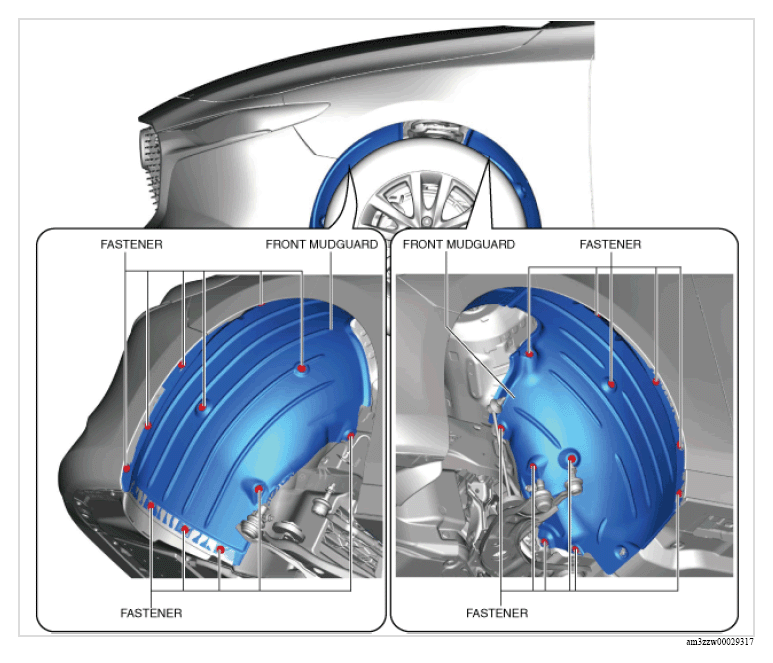

  2. Remove the fasteners.
    G13179261Courtesy of MAZDA MOTORS CORP.

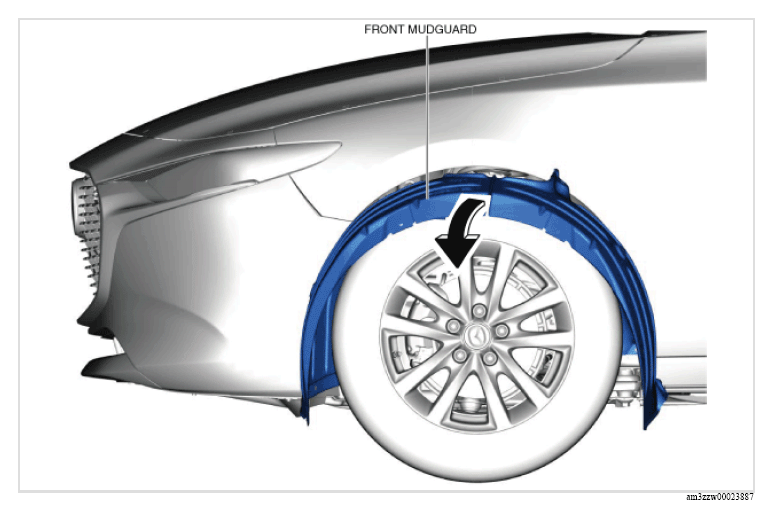

  3. Remove the front mudguard in the direction of the arrow shown in the figure.
    G13179262Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
