Intake Air Guide (Upper)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION [(US)] .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION [(US)] .)

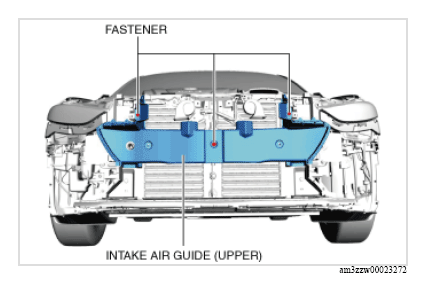

  4. Remove the fasteners shown in the figure.
    G13178510Courtesy of MAZDA MOTORS CORP.

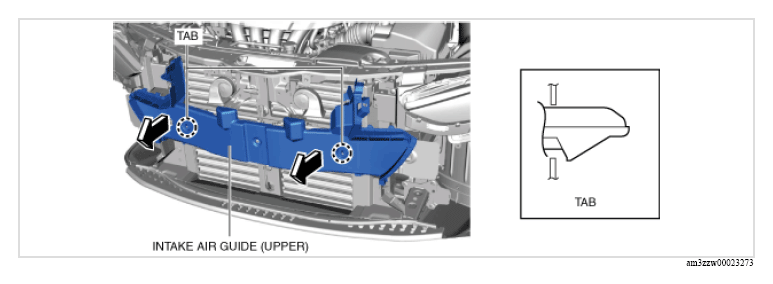

  5. Remove the intake air guide (upper) in the direction of the arrows shown in the figure while detaching the tabs.
    G13178511Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
  8. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  9. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
