Front Side Radar Sensor Bracket Installation Note

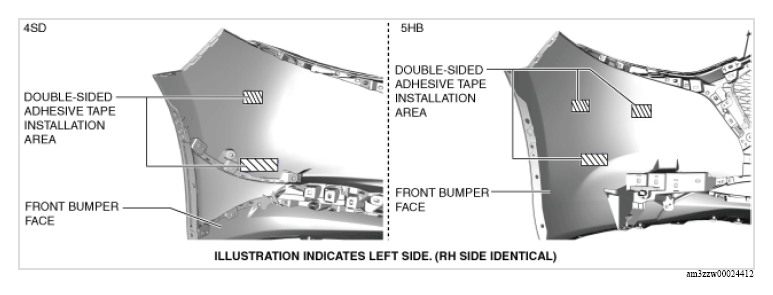

  1. Remove any grease or dirt from the front side radar sensor bracket installation surface of the front bumper face.
    G13178464Courtesy of MAZDA MOTORS CORP.

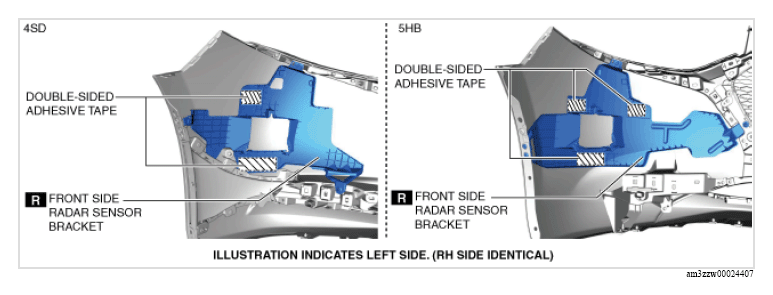

  2. Peel off the backing of the double-sided adhesive tape and install the front side radar sensor bracket.
    G13178454Courtesy of MAZDA MOTORS CORP.
  3. Press the front side radar sensor bracket to adhere the double-sided adhesive tape.
