Balance Spring Removal/Installation

WARNING:
  • If the balance spring is removed without supporting the trunk lid, the trunk lid may fall off and cause injury. When removing the balance spring, always use two persons to perform the work.

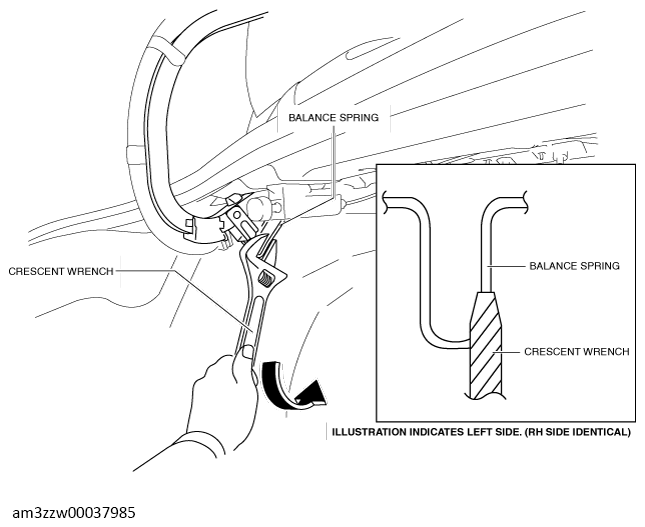

  1. Move the balance spring in the direction of the arrow shown in the figure using a crescent wrench and remove the balance spring from the trunk lid hinge.
    G13716891Courtesy of MAZDA MOTORS CORP.

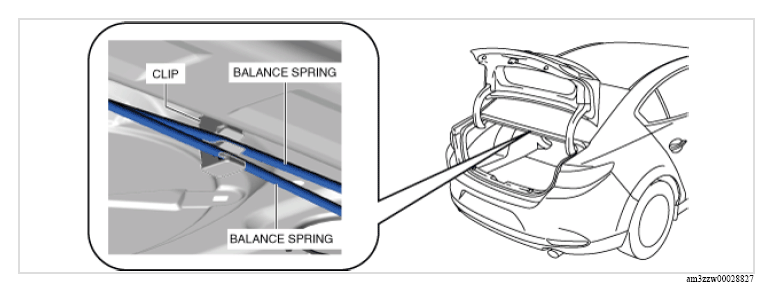

  2. Remove the balance springs shown in the figure from the clip.
    G13178436Courtesy of MAZDA MOTORS CORP.

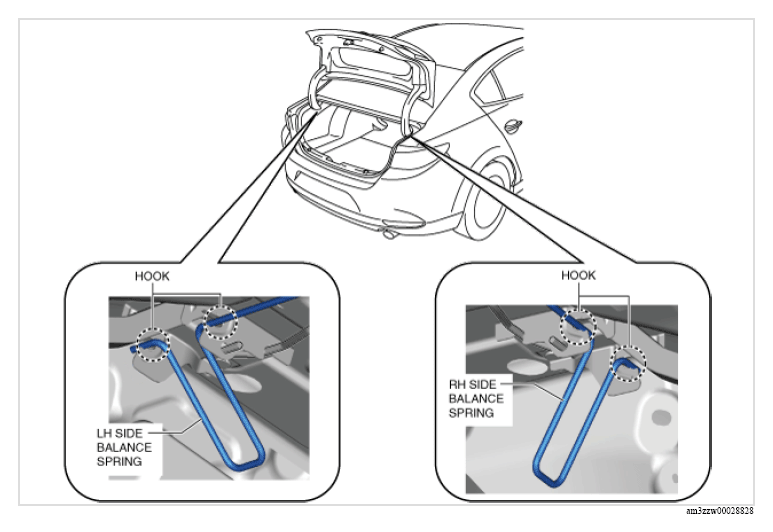

  3. Remove the LH side balance spring shown in the figure from the hooks.
    G13178437Courtesy of MAZDA MOTORS CORP.
  4. Remove the RH side balance spring shown in the figure from the hooks.
  5. Install in the reverse order of removal.
