Trunk Lid Lock Striker Removal/Installation

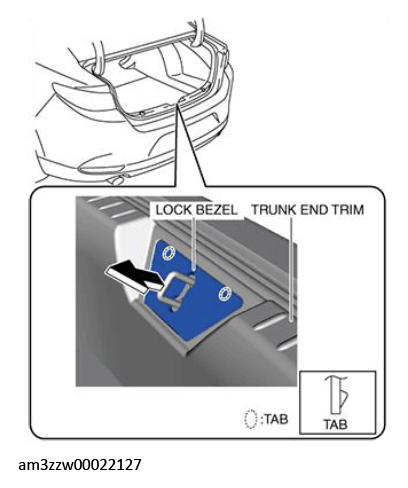

Remove the lock bezel in the direction of the arrow shown in the figure while detaching tabs.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts, then remove the trunk lid lock striker. (See Trunk Lid Lock Striker Installation Note below.)

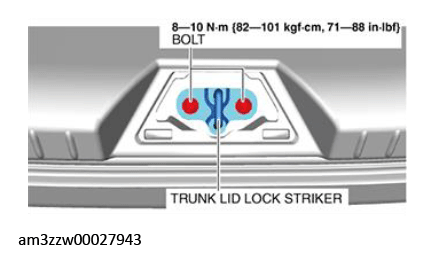

Fig 1: Trunk Lid Lock Striker Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Trunk Lid Lock Striker Installation Note

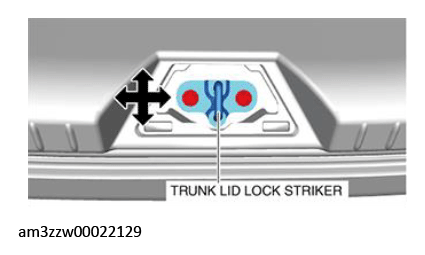

- Refer to [TRUNK LID ADJUSTMENT] and adjust the trunk lid lock striker so that the height difference and gap of the trunk lid is within the specification. (See TRUNK LID ADJUSTMENT .)
Courtesy of MAZDA MOTORS CORP.
