Rear Outer Handle Removal/Installation
>>
Rear Outer Handle Installation Note
Rear Outer Handle Installation Note

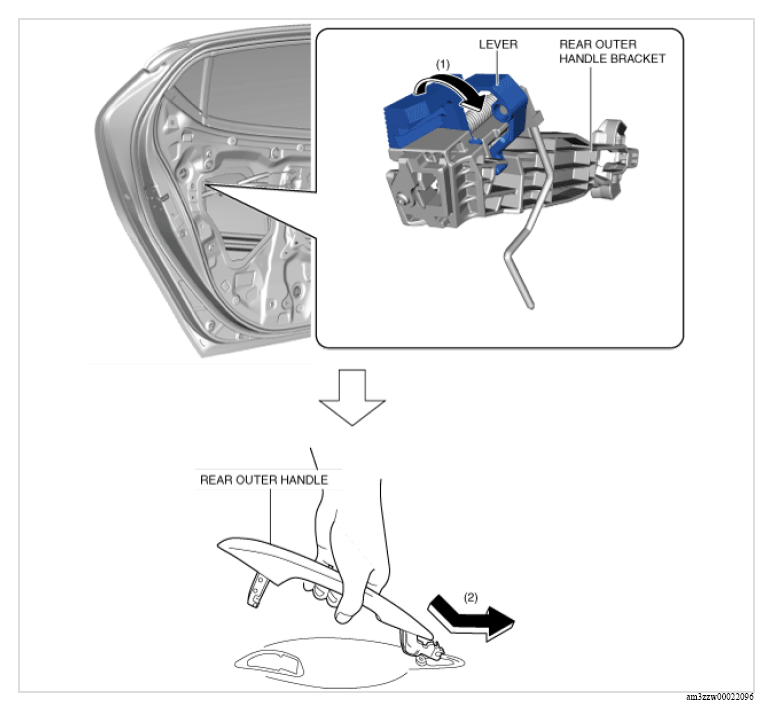

While pressing the rear outer handle bracket towards the body, move the lever in the direction of arrow (1) shown in the figure, move the rear outer handle in the direction of arrow (2), and then install the rear outer handle.
Courtesy of MAZDA MOTORS CORP.
