Front Outer Handle Removal/Installation
>>
Driver's Side
>>

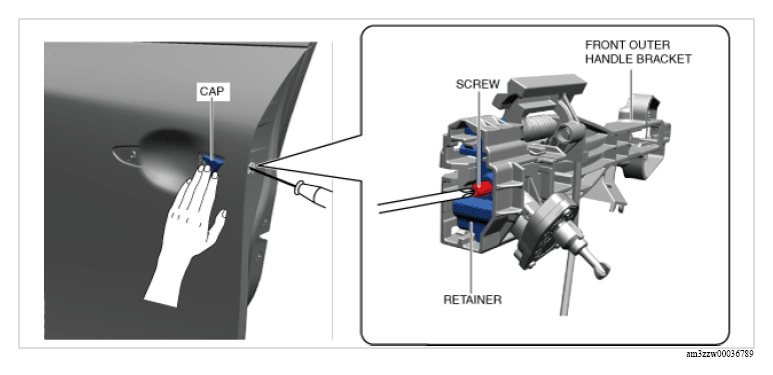

Cap installation note
Cap installation note
Tighten the screw while holding the cap, and return the retainer to its original position.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
