Door Lock Switch Removal/Installation (Us): Liftgate

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the liftgate recess. (See LIFTGATE RECESS REMOVAL/INSTALLATION .)

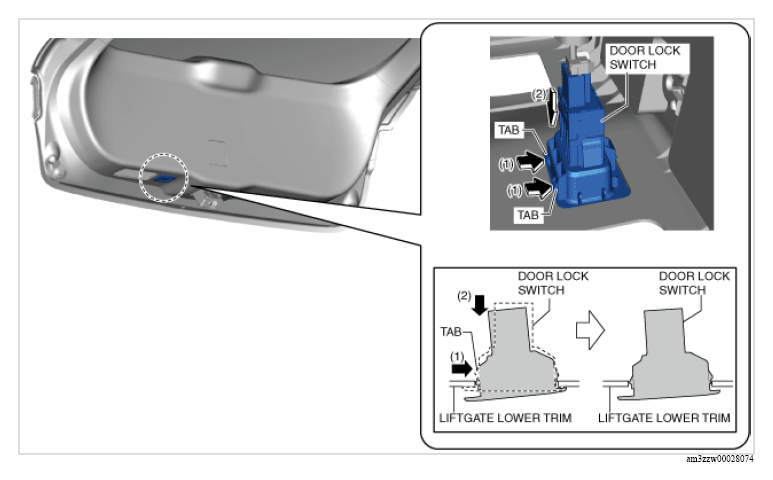

  3. While pressing the tabs of the door lock switch in the direction of arrows (1) shown in the figure, move the door lock switch in the direction of arrow (2) and detach the tabs of the door lock switch from the liftgate lower trim.
    G13178969Courtesy of MAZDA MOTORS CORP.

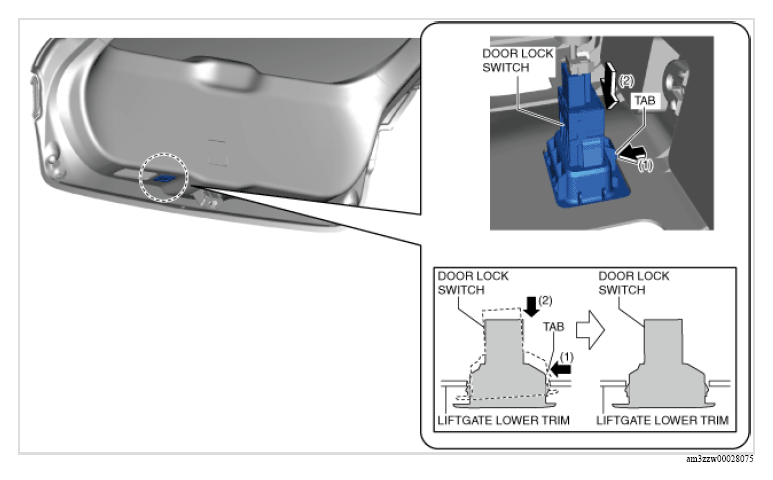

  4. While pressing the tab of the door lock switch in the direction of arrows (1) shown in the figure, move the door lock switch in the direction of arrow (2) and detach the tab of the door lock switch from the liftgate lower trim.
    G13178970Courtesy of MAZDA MOTORS CORP.

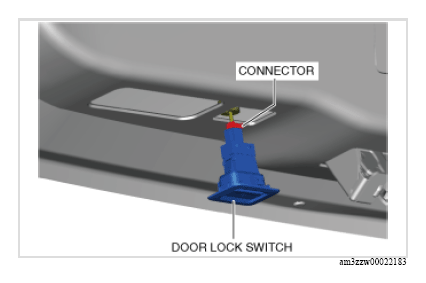

  5. Disconnect the connector.
    G13178971Courtesy of MAZDA MOTORS CORP.
  6. Remove the door lock switch.
  7. Install in the reverse order of removal.
