Door Lock Striker Removal/Installation

  1. Remove the screws, and then remove the door lock striker.

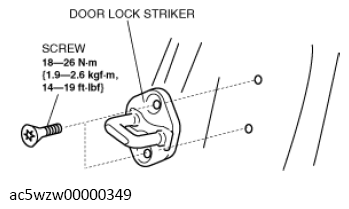

    Fig 1: Door Lock Striker Screws With Torque Specification
    G13114512Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the door. (See DOOR ADJUSTMENT .)
