Front Combination Light Removal/Installation
>>
Bolt Installation Note
Bolt Installation Note
Install the bolts in the order of (1), (2), (3) and (4).

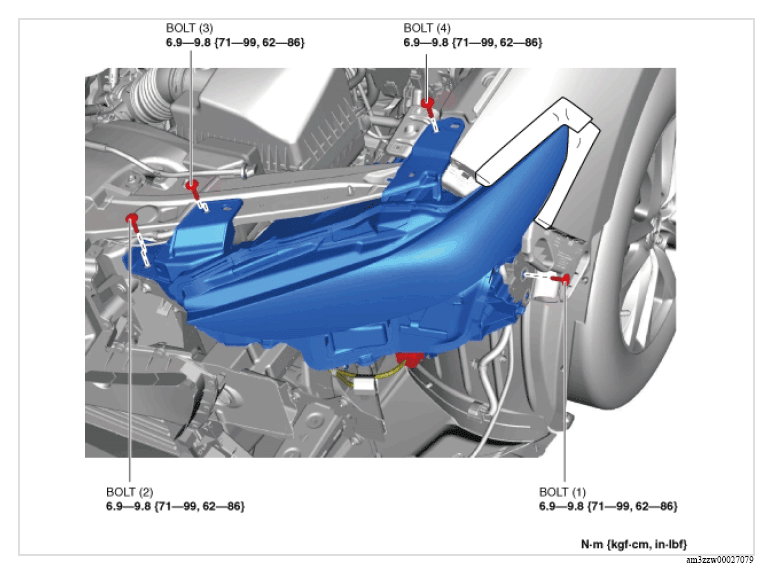

Fig 1: Front Combination Light Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
