USB Port/SD Card Slot Hub Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)

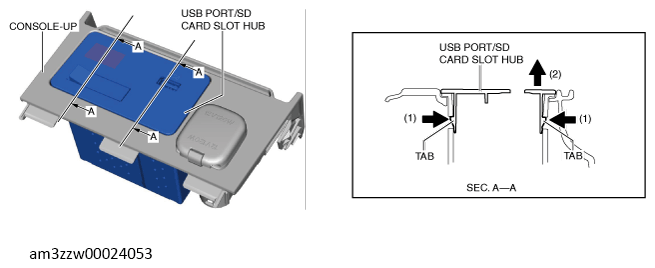

- While pressing the tabs of the USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the USB port/SD card slot hub from the console-up.
- Remove the USB port/SD card slot hub.
- Install in the reverse order of removal.
