Vehicle Has Poor Wave Signal Reception Sensitivity: Outline
VEHICLE HAS POOR WAVE SIGNAL RECEPTION SENSITIVITY DESCRIPTION AND POSSIBLE CAUSE
| Description |
- The out of range or a low radio wave strength level is displayed even though the vehicle is in a good radio signal reception area.
|
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Telematics communication unit
- TEL antenna No. 1
- TEL antenna No. 2

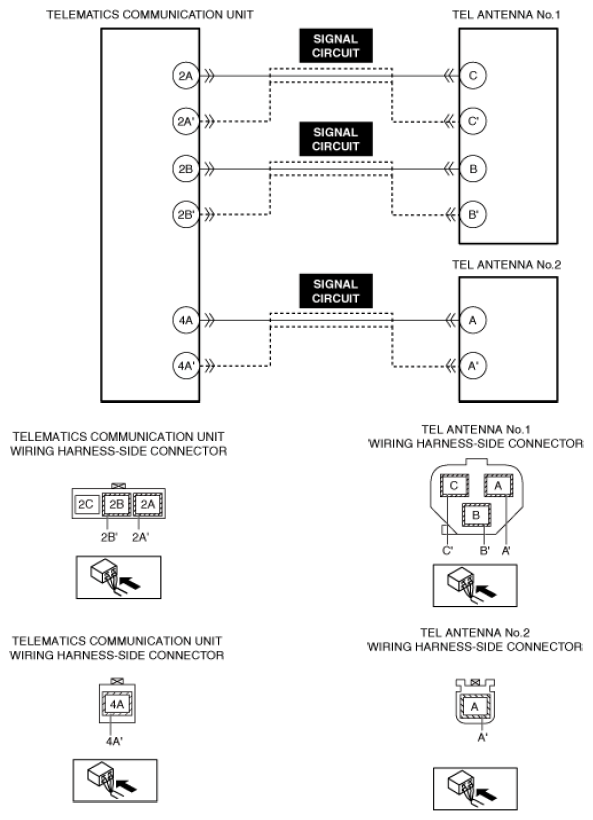

- Short to power supply, short to ground, or open circuit in TEL antenna No. 1 signal circuit
- Short to power supply, short to ground, or open circuit in TEL antenna No. 2 signal circuit
- TEL antenna No. 1 malfunction
- TEL antenna No. 2 malfunction
- Telematics communication unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
