Selector Cable End (Transaxle Side) Installation Note

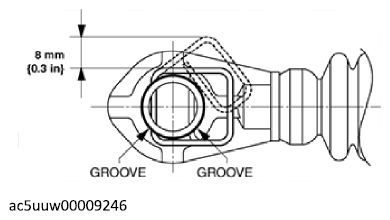

  1. Install a clip to the groove of the selector cable end (transaxle side).
    CAUTION:
    • Pull the clip within the range shown in the figure. If the clip is pulled excessively, it could deform and no longer function.
    G12189270Courtesy of MAZDA MOTORS CORP.
