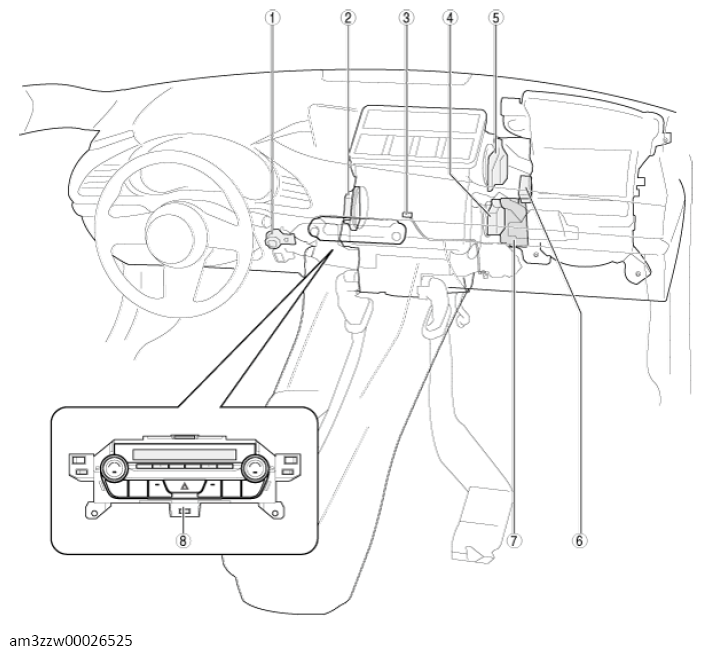

| 1 |
Passenger compartment temperature sensor
(See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) (US) .)
(See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .) |
| 2 |
Driver-side air mix actuator
(See AIR MIX ACTUATOR REMOVAL (AUTO A/C) (US) .)
(See AIR MIX ACTUATOR INSTALLATION (AUTO A/C) (US) .)
(See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .) |
| 3 |
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) (US) .)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION (AUTO A/C) .) |
| 4 |
Passenger-side air mix actuator
(See AIR MIX ACTUATOR REMOVAL (AUTO A/C) (US) .)
(See AIR MIX ACTUATOR INSTALLATION (AUTO A/C) (US) .)
(See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .) |
| 5 |
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL (AUTO A/C) (US) .)
(See AIRFLOW MODE ACTUATOR INSTALLATION (AUTO A/C) (US) .)
(See AIRFLOW MODE ACTUATOR INSPECTION (AUTO A/C) .) |
| 6 |
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) (US) .)
(See AIR INTAKE ACTUATOR INSPECTION (AUTO A/C) .) |
| 7 |
Dash-electrical supply unit
(See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION (AUTO A/C) (US) .)
(See DASH-ELECTRICAL SUPPLY UNIT INSPECTION (AUTO A/C) (US) .) |
| 8 |
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (AUTO A/C) (US) .)
(See CLIMATE CONTROL UNIT INSPECTION (AUTO A/C) .) |
