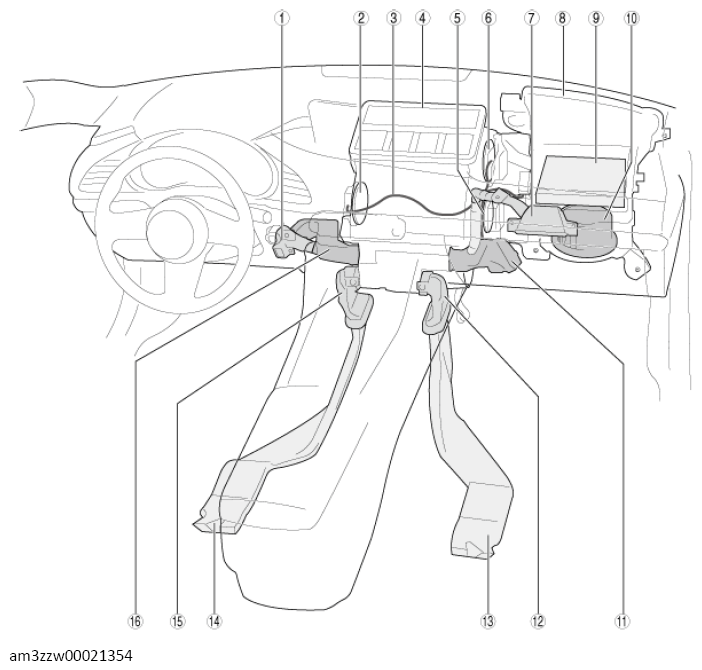

| 1 |
Driver-side front heat duct No. 2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 2 |
Driver-side air mix main link (full-auto air conditioner)
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION .) |
| 3 |
A/C unit short-cord
(See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION (US) .) |
| 4 |
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION (US) .)
(See A/C UNIT DISASSEMBLY/ASSEMBLY (US) .) |
| 5 |
Passenger-side air mix main link
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION .) |
| 6 |
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .) |
| 7 |
Passenger-side front heat duct No. 2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 8 |
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION (US) .)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY (US) .) |
| 9 |
Air filter
(See AIR FILTER REMOVAL/INSTALLATION (US) .)
(See AIR FILTER INSPECTION .) |
| 10 |
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION (US) .)
(See BLOWER MOTOR INSPECTION (US) .) |
| 11 |
Passenger-side front heat duct No. 1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 12 |
Passenger-side rear heat duct No. 1
(See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 13 |
Passenger-side rear heat duct No. 2
(See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 14 |
Driver-side rear heat duct No. 2
(See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 15 |
Driver-side rear heat duct No. 1
(See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .) |
| 16 |
Driver-side front heat duct No. 1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .) |
