DTC P2184-00: ECT Sensor No. 2 Circuit Low Input: Outline
DTC P2184:00 (PCM, VINs 7, L, M) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
ECT sensor No. 2 circuit low input |
| Detection condition |

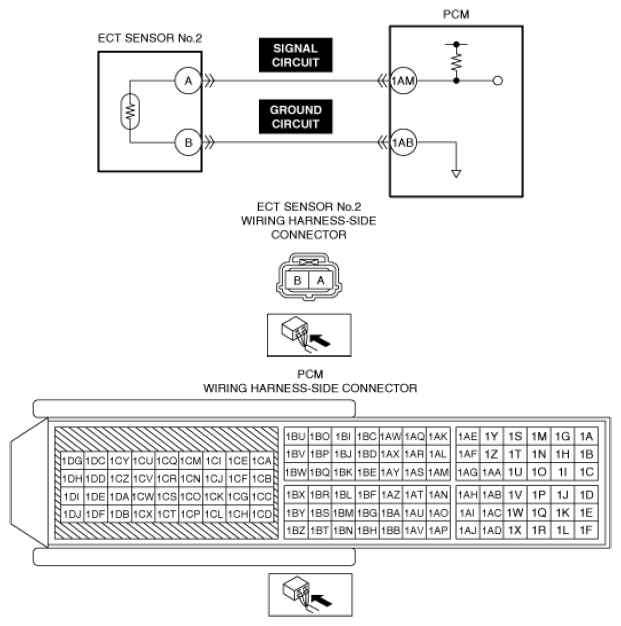

- The PCM monitors the ECT sensor No. 2 signal. If the PCM detects that the ECT sensor No. 2 voltage at the PCM terminal 1AM is below 0.23 V for 5 s, the PCM determines that the ECT sensor No. 2 circuit has a malfunction.
|
| Fail-safe |
|
| Possible cause |
- ECT sensor No. 2 connector or terminals malfunction
- ECT sensor No. 2 malfunction
- PCM connector or terminals malfunction
- Short to ground in ECT sensor No. 2 signal circuit
- Short circuit in ECT sensor No. 2 signal circuit and ground circuit
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
