DTC P0091-00: Fuel Pressure Regulator Control Circuit Low Input: Outline

DTC P0091:00 (PCM, VINs 7, L, M) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Fuel pressure regulator control circuit low input
Detection condition	When the PCM turns the spill valve control solenoid valve off but the spill valve control solenoid valve control circuit voltage is low for 5 s, the PCM determines that the spill valve control solenoid valve control circuit has a malfunction. Precondition Engine speed: 5, 700 rpm or less Battery voltage: 10.5 V or more
Fail-safe	Stops high pressure fuel pump control Limits intake air amount

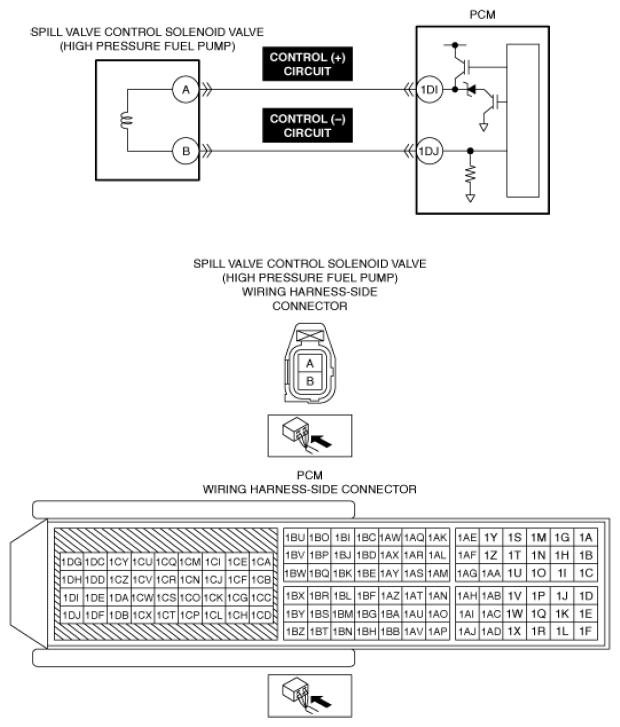

Possible cause	Spill valve control solenoid valve (high pressure fuel pump) connector or terminals malfunction PCM connector or terminals malfunction Short to ground in spill valve control solenoid valve control (+) circuit Open circuit in any of the following spill valve control solenoid valve circuits. Control (+) circuit Control (-) circuit Spill valve control solenoid valve malfunction (built-into high pressure fuel pump) PCM malfunction
Courtesy of MAZDA MOTORS CORP.
