Wheel Hub Component Installation Note

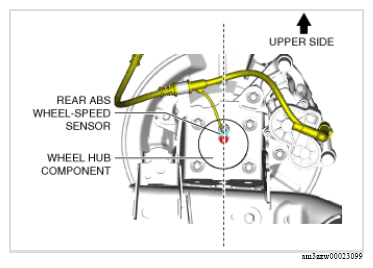

  1. Install the wheel hub component with the rear ABS wheel-speed sensor toward the upper side.
    G13175748Courtesy of MAZDA MOTORS CORP.
