Operation Using Remote Transmitter Button Not Possible: Outline
OPERATION USING REMOTE TRANSMITTER BUTTON NOT POSSIBLE DESCRIPTION AND POSSIBLE CAUSE
| Description |
- The door lock/unlock operation using the remote transmitter button is not possible.
- The trunk open operation using the remote transmitter button is not possible.
|
| Possible cause |
- Remote transmitter malfunction
- Effect of non-standard equipment (any control unit with built-in micro computer such as radio set, mobile telephone, and TV)

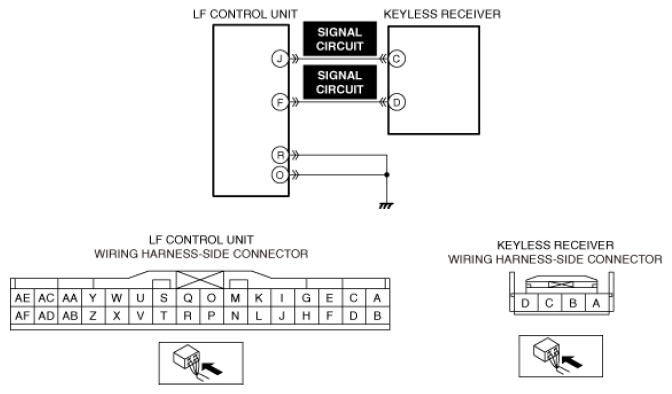

- Connector or terminal malfunction of the following parts:
- Keyless receiver
- LF control module
- Short to ground or open circuit in keyless receiver signal circuit
- Keyless receiver malfunction
- LF control unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
