Clip Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install the clip to the position shown in the figure.

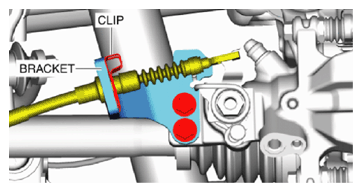

Fig 1: Identifying Clip And Bracket

Courtesy of MAZDA MOTORS CORP.
