Electric Vacuum Pump Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Switch the ignition ON (engine off or on).
- Turn the steering wheel to the right until it locks.
- Switch the ignition off.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the front mudguard No. 1 and front deflector as a single unit. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
- Remove horn HI. (See HORN REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION

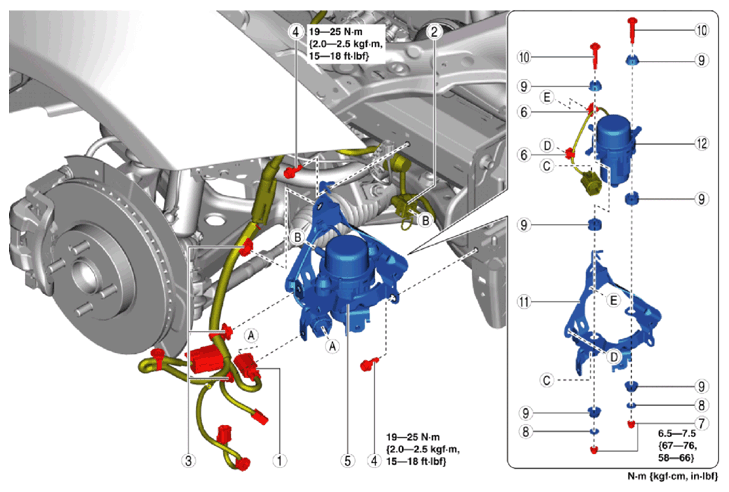

| 1 | Electric vacuum pump connector |
| 2 | Quick release connector (See Quick Release Connector Removal Note .) (See Quick Release Connector Installation Note .) |
| 3 | Harness clip |
| 4 | Bolt |
| 5 | Electric vacuum pump component |
| 6 | Harness clip |
| 7 | Nut |
| 8 | Washer |
| 9 | Rubber mount |
| 10 | Bolt |
| 11 | Bracket |
| 12 | Electric vacuum pump |
