Oil Pump Driven Sprocket Installation Note

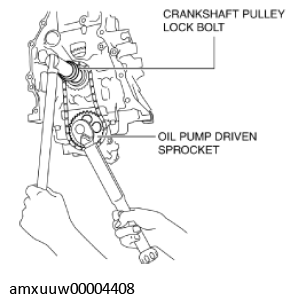

  1. Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.
    G11275899Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump driven sprocket.

    Tightening torque

    26-36 N.m {2.7-3.6 kgf.m, 20-26 ft.lbf}

  3. Remove the temporarily assembled crankshaft pulley lock bolt.
