Air Intake Hose No. 3 Installation Note

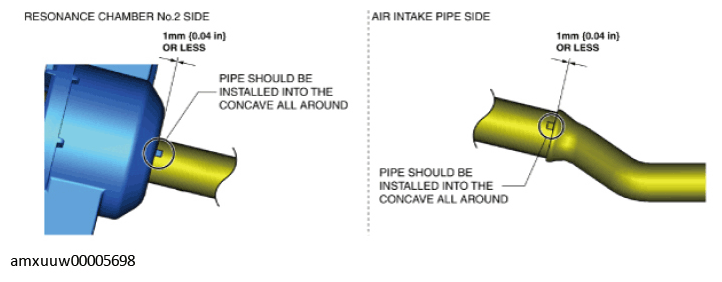

Install the air intake hose No. 3 as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
