With Power Liftgate (PLG)

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.

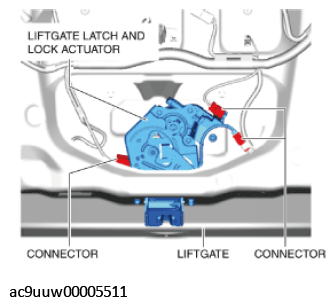

    Fig 1: Liftgate Latch And Lock Actuator Connector
    G11432742Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

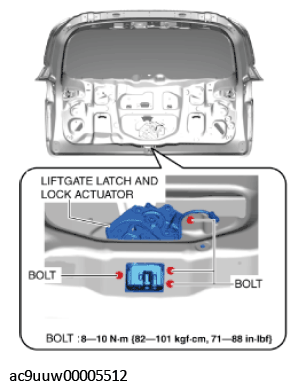

    Fig 2: Liftgate Latch And Lock Actuator Bolts With Torque Specifications
    G11432743Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate latch and lock actuator from the liftgate.

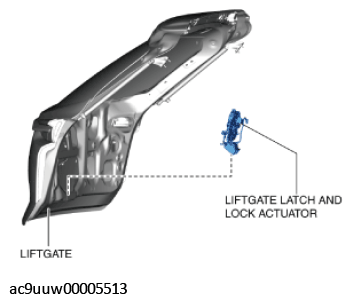

    Fig 3: Removing Liftgate Latch And Lock Actuator From Liftgate
    G11432744Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
