Auxiliary Jack/USB Port/SD Card Slot Hub Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the rear console panel. (See REAR CONSOLE REMOVAL/INSTALLATION .)
- Remove the rear heat duct No. 1. (See REAR HEAT DUCT No. 1 REMOVAL/INSTALLATION .)
- Disconnect the connectors.

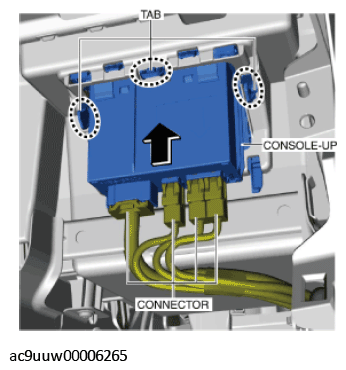

- Remove the console-up in the direction of the arrow while detaching the tabs.

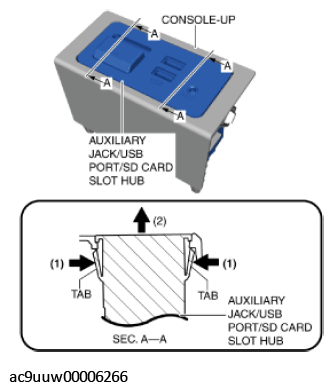

- While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the console-up.
- Remove the auxiliary jack/USB port/SD card slot hub.
- Install in the reverse order of removal.
