No. 1 Blown Fuses

1	BLOWN FUSES

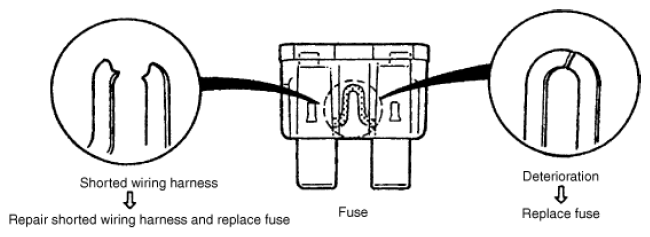

[TROUBLESHOOTING HINTS] Inspect condition of fuse. Courtesy of MAZDA MOTORS CORP.

Damaged Fuse And Related Wiring Harness Description

Damaged fuse	Related wiring harness
MAIN	FAN1 fuse FUEL PUMP2 fuse IG2 fuse ROOM fuse ENG.MAIN fuse INJECTOR fuse EVVT fuse HAZARD fuse IG1 relay
FAN	Cooling fan relay
ENG IG1	Fuel pump relay PCM
FUEL PUMP2	Fuel pump relay
STR	Starter Generator
C/U IG1	Generator
IG2	Starter relay ACC relay
ENG.MAIN	Main relay
INJECTOR	Fuel injector relay
EVVT	Electric variable valve timing relay
ENGINE1	Electric variable valve timing relay A/F sensor HO2S MAF sensor/IAT sensor No. 1 Intake CMP sensor Three way solenoid valve Air bypass valve EGR valve
ENGINE2	Fuel injector relay Purge solenoid valve OCV PCM Exhaust CMP sensor Ignition coil/ion sensor No. 1 Ignition coil/ion sensor No. 2 Ignition coil/ion sensor No. 3 Ignition coil/ion sensor No. 4
ENGINE3	Cooling fan relay Engine oil solenoid valve
