U.S.A. And Canada: AWD: Notes

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Drain the fuel. (See FUEL DRAINING PROCEDURE .)
Disconnect the following parts:
Main side
- Fuel pump unit connector (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
- Quick release connector (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
Sub side
- Fuel gauge sender unit (sub) connector (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
Remove the HO2S clip from the body. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

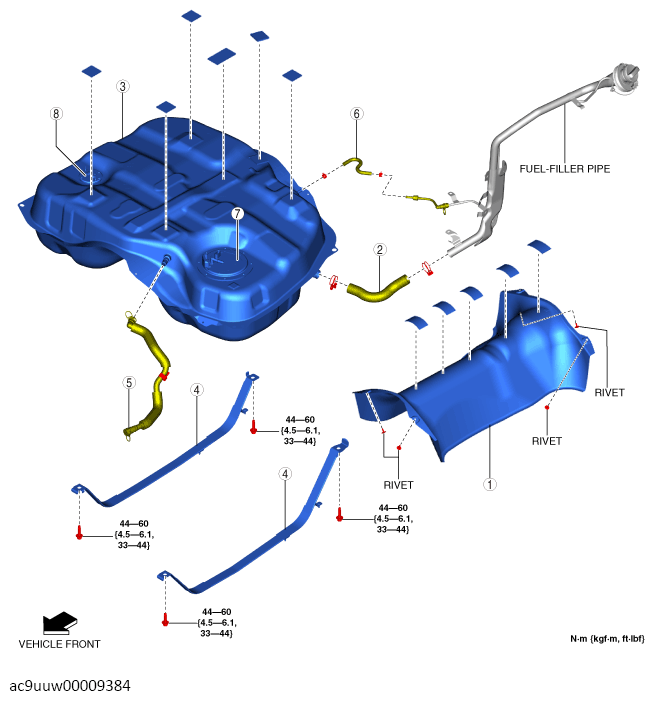

Fig 1: Fuel Tank Components With Torque Specification (U.S.A. And Canada, AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel tank insulator (See FUEL TANK INSULATOR REMOVAL NOTE (AWD) .)
2	Joint hose
3	Fuel tank (See FUEL TANK REMOVAL NOTE (AWD) .)
4	Fuel tank strap
5	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
6	Breather hose
7	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
8	Fuel gauge sender unit (sub) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
