Bolt Installation Note

  1. Install the bolts in the order shown in the figure.

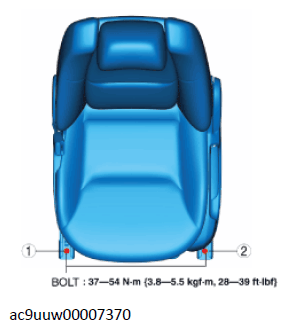

    Fig 1: Front Seat Slide Bolts With Torque Specification (1 Of 2)
    G11432489Courtesy of MAZDA MOTORS CORP.

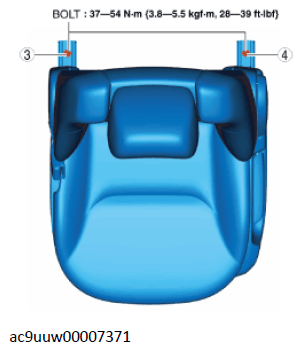

    Fig 2: Front Seat Slide Bolts With Torque Specification (2 Of 2)
    G11432490Courtesy of MAZDA MOTORS CORP.
