Foot Support Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .) (2) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .) (3) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .) (4) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .) (5) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .) (6) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .) (7) Side wall (See SIDE WALL REMOVAL/INSTALLATION .) (8) Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION .) (9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
- Partially peel back the floor covering.

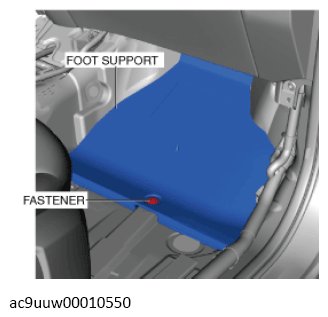

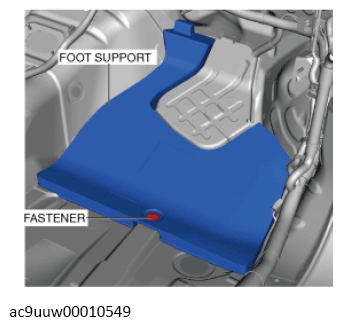

- Remove the fastener.
With 360° view monitor control module
Without 360° view monitor control module

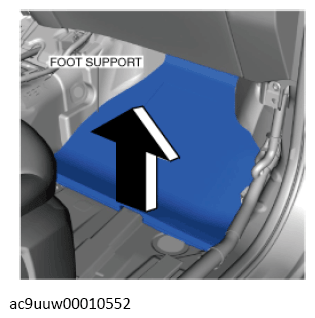

- Pull the foot support in the direction of the arrow and remove it.
With 360° view monitor control module
Without 360° view monitor control module
- Install in the reverse order of removal.
