Liftgate/Power Liftgate (PLG) Latch Switch Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
   2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
   3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
   4. Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
   5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
3. Liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

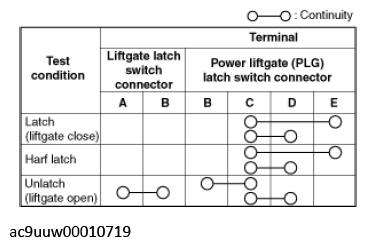

4. Verify that the continuity is as indicated in the table.

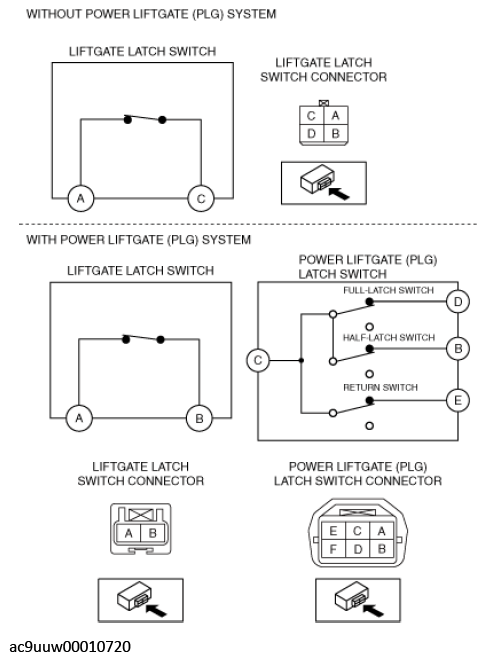

Without Power Liftgate (PLG) System

Courtesy of MAZDA MOTORS CORP.

With Power Liftgate (PLG) System

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  NOTE:

  • When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

Courtesy of MAZDA MOTORS CORP.
